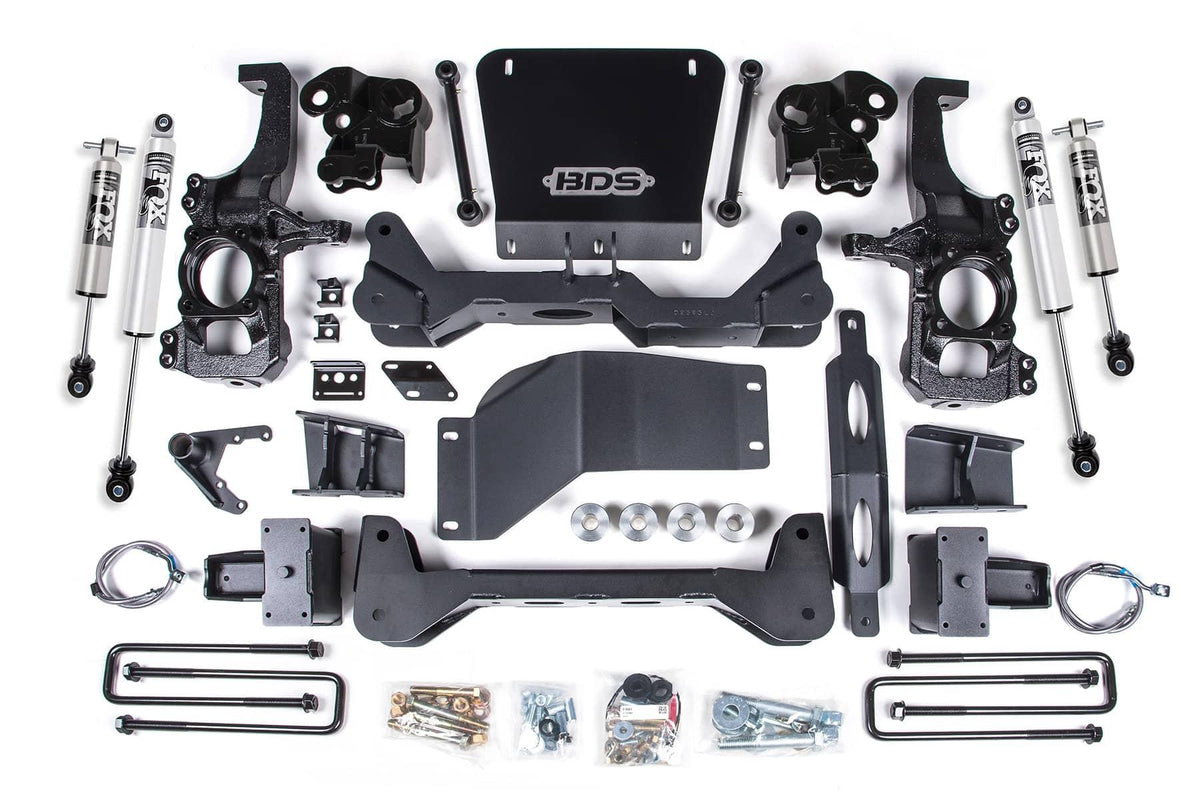

5" LIFT KIT W/ FOX 2.5 HTO SHOCKS 20-26 GM HD W/ OVERLOADS

BDS 5" LIFT KIT WITH FOX 2.5 PERFORMANCE SERIES HTO SHOCKS | 20-26 SILVERADO/SIERRA HD WITH FACTORY OVERLOAD SPRINGS

• High clearance design with no torsion bar drop brackets.
• Robust steering knuckles maintain ESC system compliance.
• HD skid plate system improved off road protection.
• Multpoint differential relocation brackets to secure the front axle and improve CV angles.
• Factory Protection Plus drivetrain warranty included.

Important Note: Requires frame bracket modification. Torsion Bar Tool required to load/unload torsion bars, The GM specified tool is #CH48809. Models with twopiece rear driveshafts will require a carrier bearing drop kit. Factory 17-18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled with up to a 35x12.50 tire. In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual Cardan style driveshaft. Some minor trimming will be required with certain wheel/tire combination. This is normal with most aftermarket tire/wheel fitment on Chevy/GM trucks. Trimming will normally included the bottom edge of the inner fender shrouds and/or lower corner of front bumper valance. As a rule of thumb, deeper backspacing and shorter/narrower tires will reduce/eliminate trimming required. Further
